Fitting for lighting rod

Online InquiryEmail Us

Specification

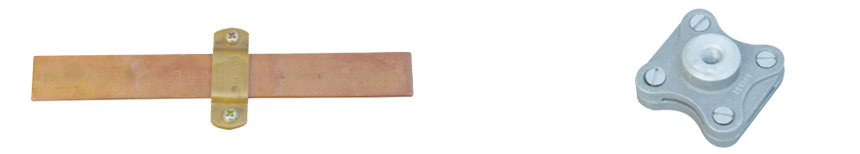

铜(铝)带固定线夹(线夹定位器）


For use with Bare Copper
Conductor Size mm Weight(kg) cat.no.
20 x 3 0.06 YG203
25 x 3 0.07 YG253
25 x 4 0.07 YG254
25 x 6 0.08 YG256
31 x 3 0.09 YG313
31 x 6 0.10 YG316
38 x 3 0.12 YG383
38 x 5 0.12 YG385
38 x 6 0.14 YG386
50 x 3 0.15 YG503
50 x 4 0.15 YG504
50 x 6 0.16 YG506
用于裸铝带
20 x 3 0.02 YG203
25 x 3 0.03 YG253
25 x 6 0.04 YG256
50 x 6 0.05 YG506


铜(铝)带固定线夹


For use with Bare Copper
Conductor Size mm Weight(kg) cat.no.
20 x 3 0.02 TCC203
25 x 3 0.02 TCC253
For use with Bare Aluminium
铝 0.01 TCA203
20 x 3 0.05 TCA253


铝(铜)方框固定线夹


Conductor Size mm 导线材料 Weight (kg) cat.no.
25 x 3 Copper 0.23 CSC253
25 x 6 Copper 0.42 CSC256
50 x 6 Copper 0.98 CSC506
25 x 3 Aluminium 0.07 ASC253

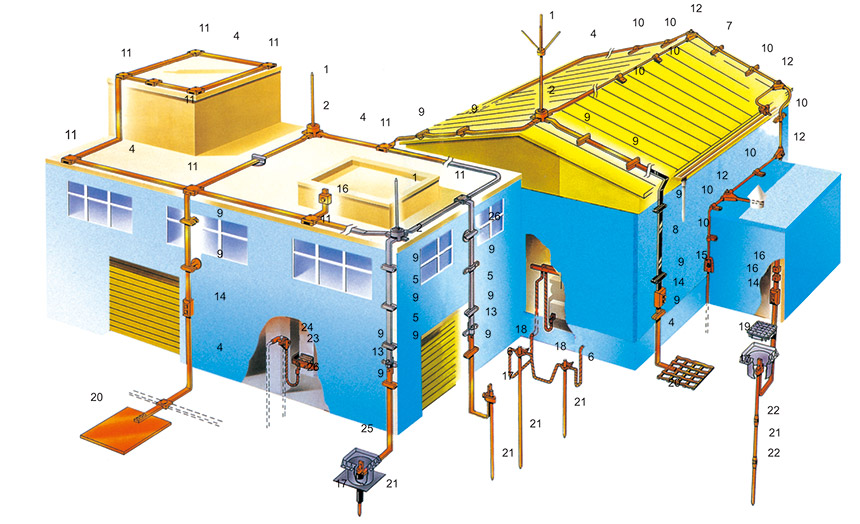

No.Description 13 Bimetallic Connectors
1 Air Terminals 14 Test Clamps for Tape
2 Air Terminal Fixing for Tape 15 Test Clamps for Solid Circular
3 Holdfast 16 Bonds
4 Copper Tape 17 Tape-Earth Rod Clamps
5 Aluminium Tape 18 Cable-Earth Rod Clamps
6 Copper Strand 19 Inspection Pits
7 Copper Solid Circular Conductor 20 Earth Plates&Mats
8 P.V.C.Covered Tape 21 Earth Rods
9 Tape Fixings 22 Earth Rods Couplings
10 Solid Circular Fixings 23 Earthing Points
11 Junction Clamps for Tape 24 Earth Rod Seal
12 Junction Clamps for Solid Circular 26 Adhesive D.C.Clip Flexible Braiding Bonds
