Splicing fittingParallel Groove Clamp
Back

Parallel Groove Clamp

Online InquiryEmail Us

Specification

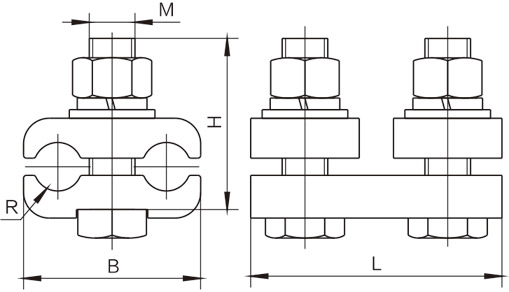

Catalog No. Suitable Conductor (mm2) Main Dimensions(mm) Bolt No.
L B H R M
JB-0 16 ~25 70 37 40 3.5 10 2
JB-1 35 ~50 78 44 45 5.0 12 2
JB-2 70 ~95 112 52 50 7.0 12 3
JB-3 120~50 138 62 60 8.5 16 3
JB-4 185~240 142 71 65 11.0 16 3
JB-5 300-400 215 100 80 15.5 20 4
JB-6 500~630 230 110 90 18.5 20 4

Other Products

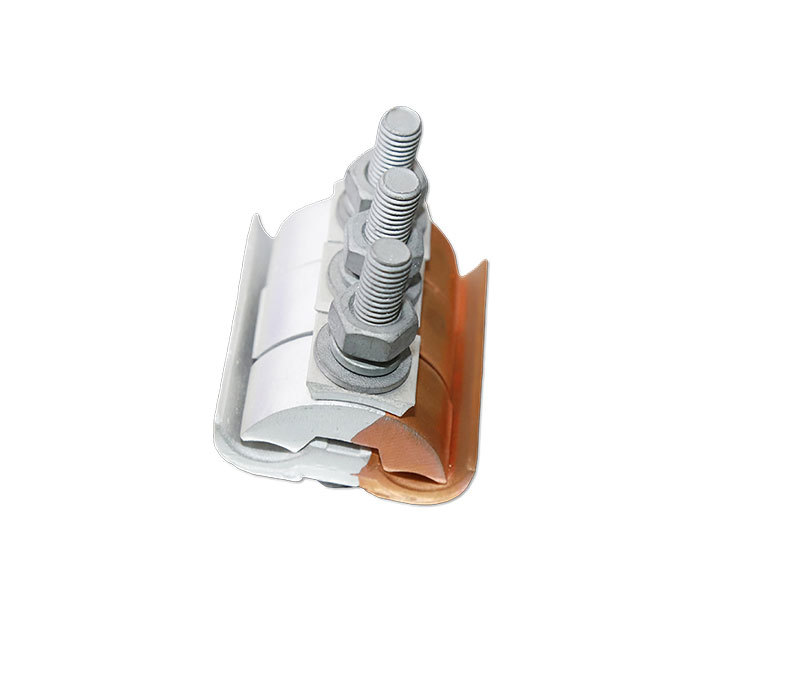

  • CAPG Copper-Aluminum Special-shaped Parallel-Butt Connector (Export Type)

    CAPG Copper-Aluminum Special-shaped Parallel-Butt Connector (Export Type)

  • CAPG Copper-Aluminum Special-shaped Parallel-Butt Connector (Export Type)

    CAPG Copper-Aluminum Special-shaped Parallel-Butt Connector (Export Type)

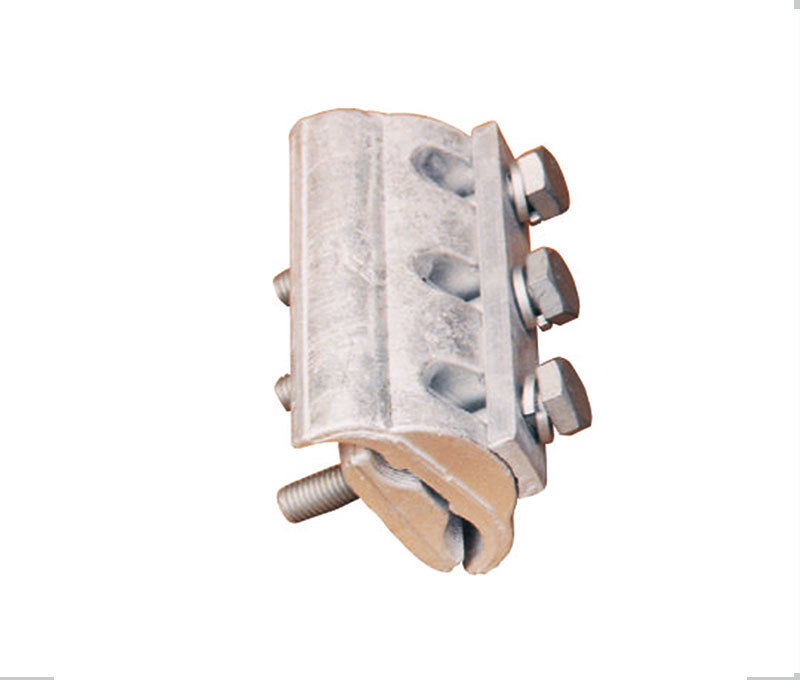

  • APG Aluminum Special-shaped Parallel Connection Wire Clamp (Extruded Type)

    APG Aluminum Special-shaped Parallel Connection Wire Clamp (Extruded Type)

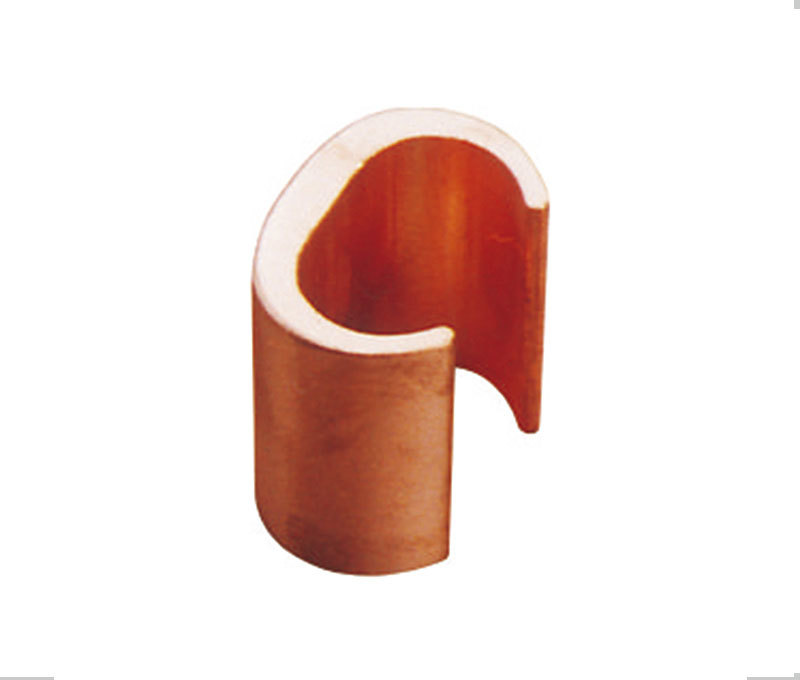

  • C-shaped copper terminal clip

    C-shaped copper terminal clip

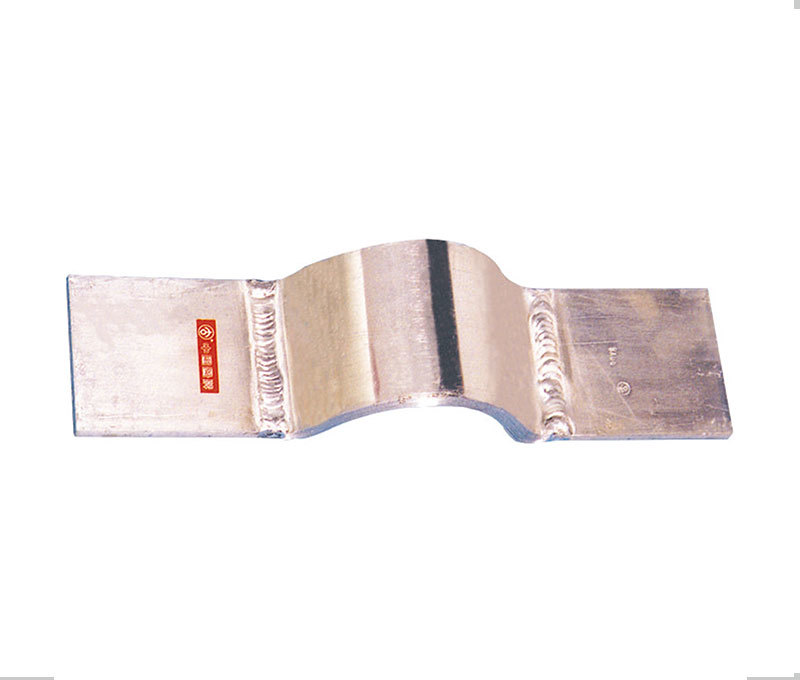

  • MS aluminum busbar expansion joint

    MS aluminum busbar expansion joint

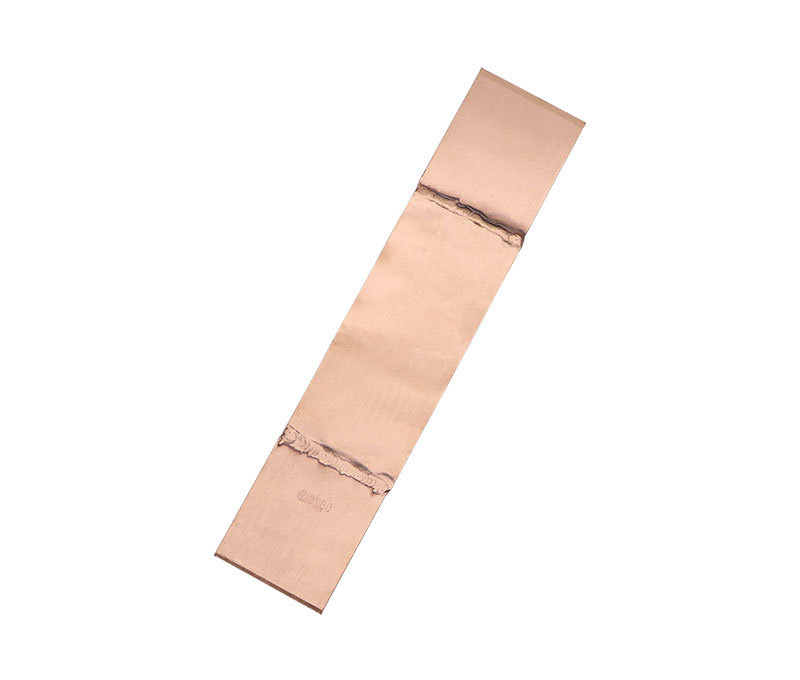

  • MST Copper Busbar Expansion Joint

    MST Copper Busbar Expansion Joint

  • MSS copper-aluminum busbar expansion joint

    MSS copper-aluminum busbar expansion joint

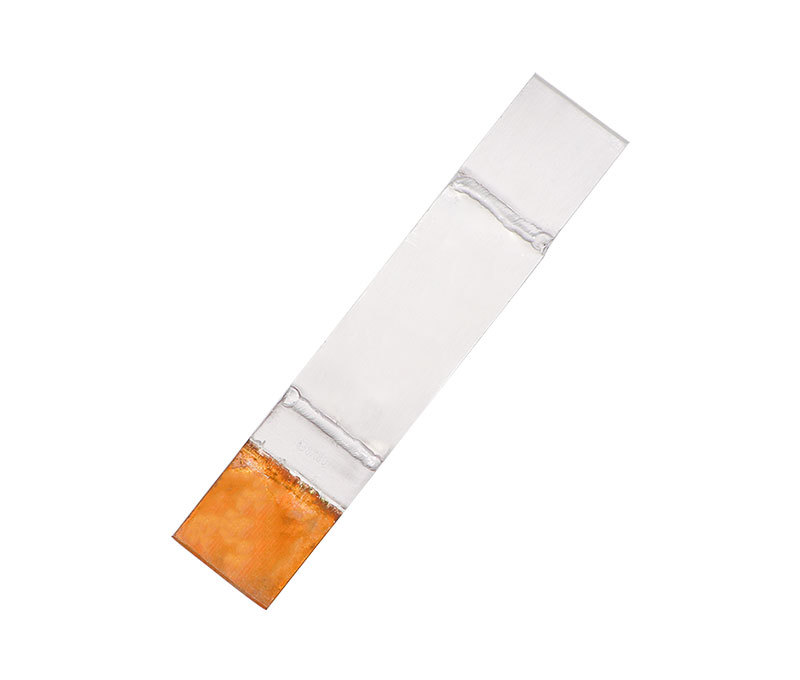

  • MSSB copper-aluminum busbar expansion joint (explosion welding)

    MSSB copper-aluminum busbar expansion joint (explosion welding)

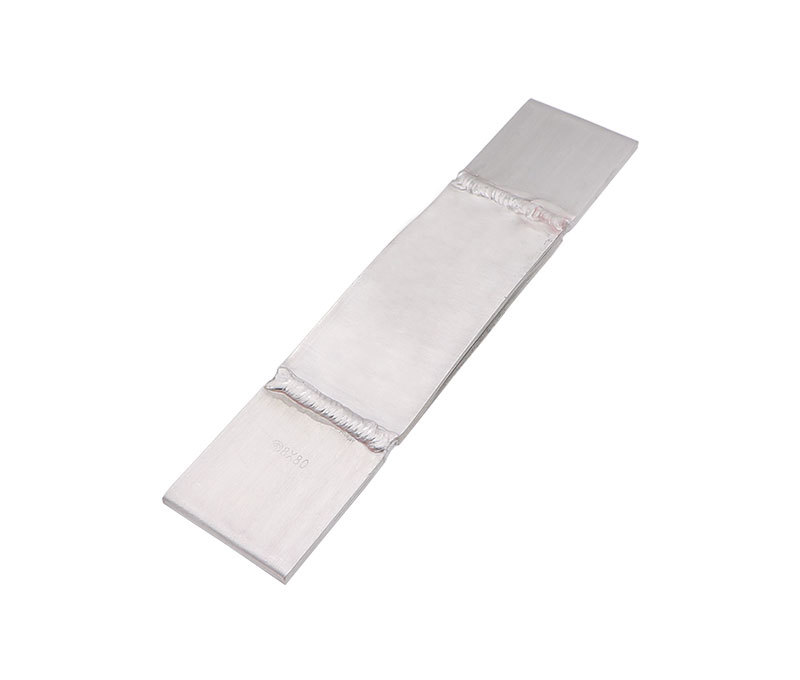

  • MGS busbar expansion joint

    MGS busbar expansion joint

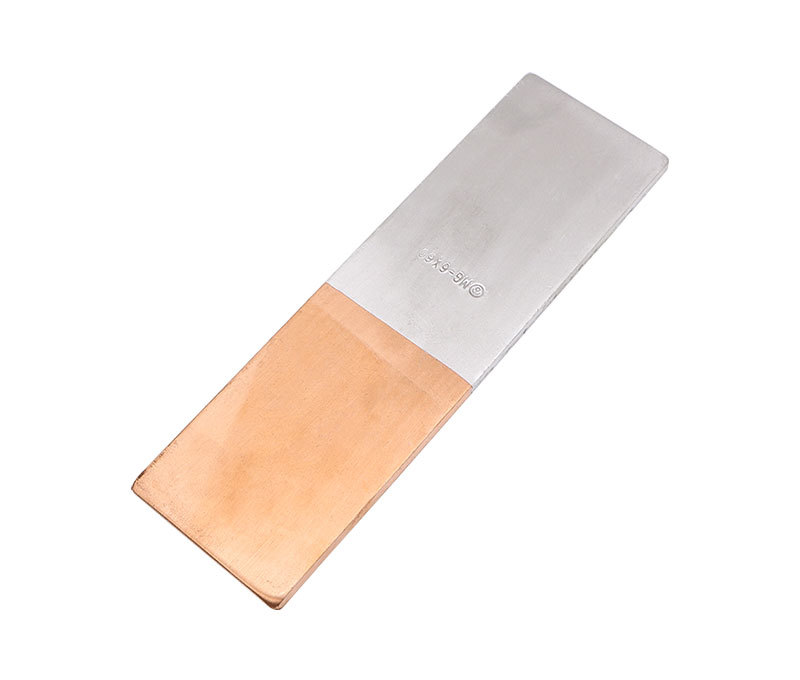

  • MGTS Copper-Steel Transition Plate

    MGTS Copper-Steel Transition Plate

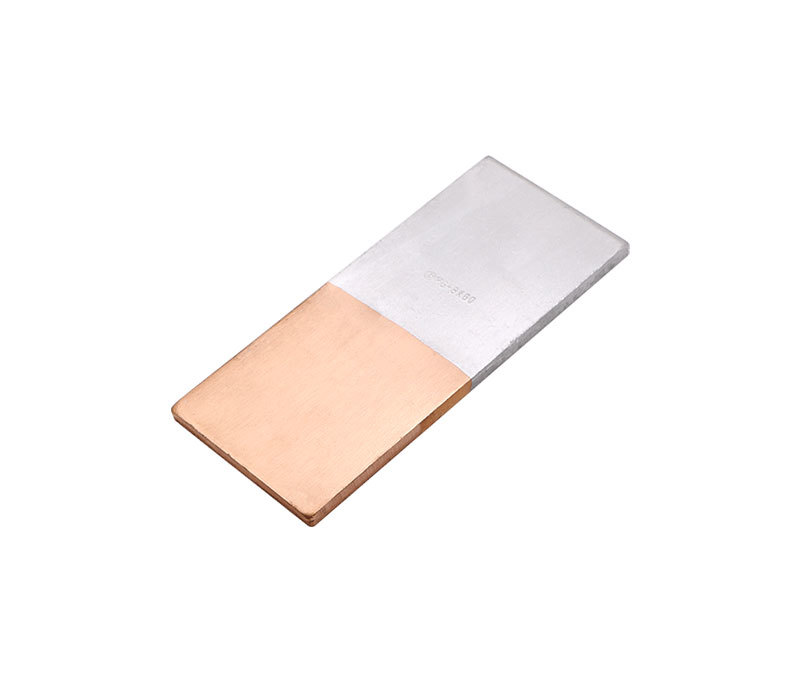

  • MG copper-aluminum transition plate

    MG copper-aluminum transition plate

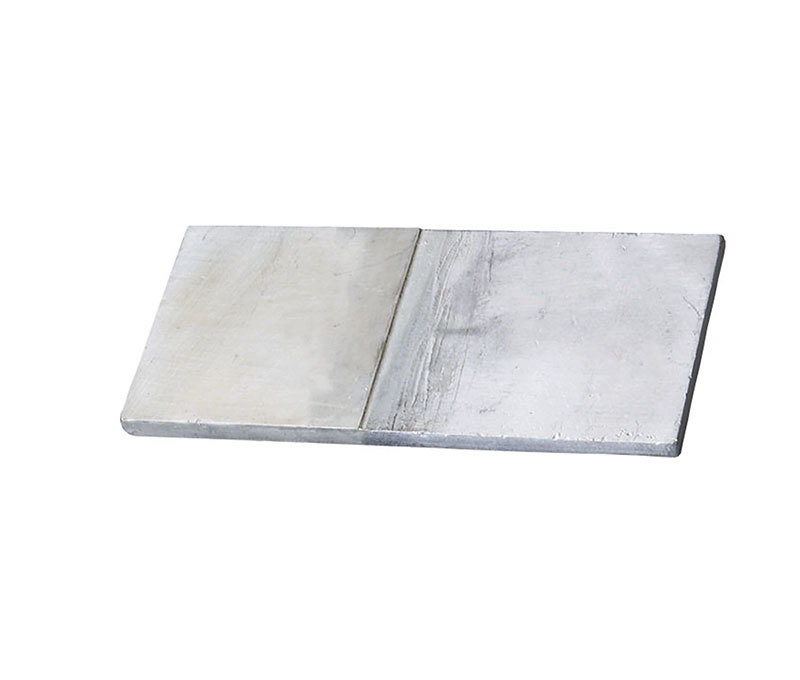

  • MG copper-aluminum transition plate (welding)
