Dampers（Asymmetric tuning fork vibration prevention hammer)

Online InquiryEmail Us

Specification

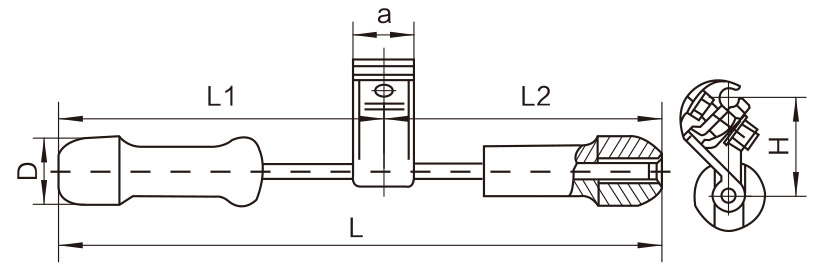

Catalog No. Fit wire diameter
(mm) 		Main Dimensions(mm) Weight
(kg)
L H a L1 L2
FR-1 7~12 429 80 50 239 190 2.60
FR-2 11~22 429 80 50 239 190 2.60
FR-3 18~28 505 90 60 280 225 4.97
FFM 23~36 550 97 60 300 250 4.50


The clamps are made of aluminum alloy, the hammer heads are of gray cast iron, and they are painted or hot-dip galvanized. The rest are hot-dip galvanized steel components.

stable design
Catalog No. 		Fit wire diameter
(mm) 		Main Dimensions(mm) Weight
(kg)
L H a
FRY-1/G 6.4~8.6 280 45 40 1.5
FRY-2/G 8.6~12.0 380 60 50 2.2
FRY-3/G 12.0~14.5 480 65 60 4.2
FRY-1/2 12.0~16.0 429 80 50 2.8
FRY-2 12.0~16.0 429 80 50 2.8
FRY-2/3 16.0~18.0 429 80 50 2.8
FRY-3/4 18.0~22.5 505 90 60 4.5
FRY-3/5 22.5~30.0 505 90 60 5.0
FRY-4/5 22.5~30.0 550 97 60 7.6
FRY-4/6 30.0~35.0 550 97 60 7.6
