OutDoor supports for bar (Horizontal setting)

Online InquiryEmail Us

Specification

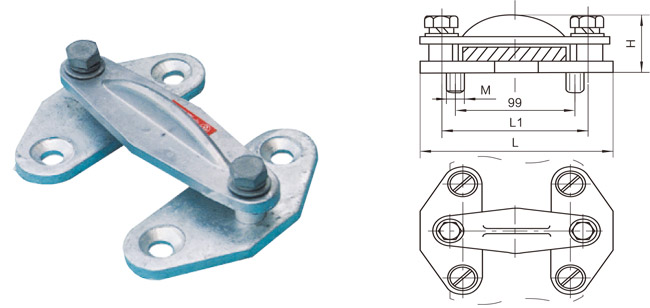

Outdoor supports for single pieces bar (horizontal setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWP-101 63 38 180 83 12 1.2
MWP-102 80 42 180 100 12 1.2
MWP-103 100 46 180 120 12 1.3
MWP-104 125 48 180 145 12 1.5


The upper cover is aluminium alloy,the spacer is aluminium the other parts are hot-dip galvanized steel.

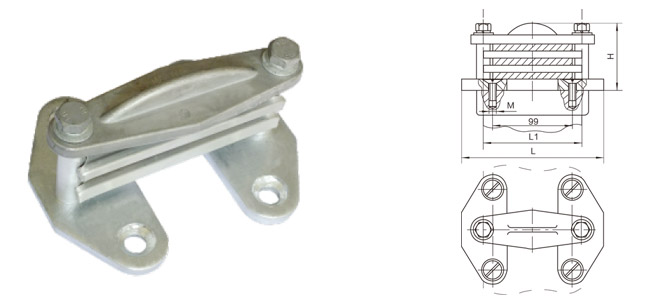

Outdoor supports for two pieces bar (horizontal setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWP-201 63 58 180 83 12 1.5
MWP-202 80 62 180 100 12 1.5
MWP-203 100 66 180 120 12 1.6
MWP-204 125 88 180 145 12 1.7


The upper cover is aluminium alloy,the spacer is aluminium the other parts are hot-dip galvanized steel.


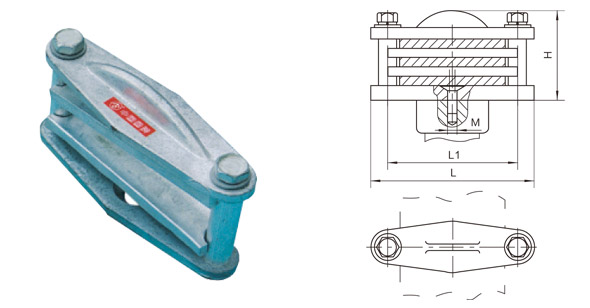

WeigHt


Catalog No. 母线宽度 (mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWP-301 63 78 180 83 12 1.7
MWP-302 80 82 180 100 12 1.8
MWP-303 100 86 180 120 12 1.8
MWP-304 125 88 180 145 12 1.9


The upper cover is aluminium alloy,tHe spacer is aluminium the other parts are hot-dip galvanized steel.

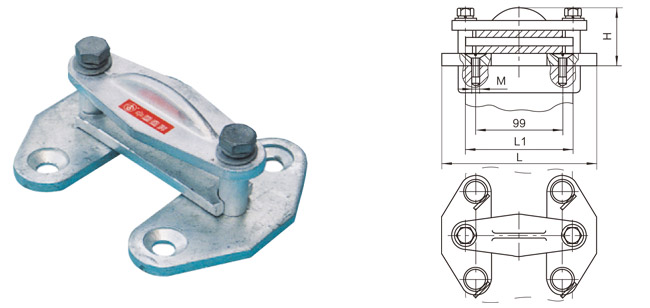

Outdoor supports for four pieces bar (horizontal setting)


Catalog No. Bus width (mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWFM01 63 98 180 83 12 1.9
MWFM02 80 102 180 100 12 2.0
MWFM03 100 106 180 120 12 2.0
MWFM04 125 108 180 145 12 2.2


The upper cover is aluminium alloy,the spacer is aluminium the other parts are hot-dip galvanized steel.
