OutDoor supports for bar (vertiCal setting)

Online InquiryEmail Us

Specification

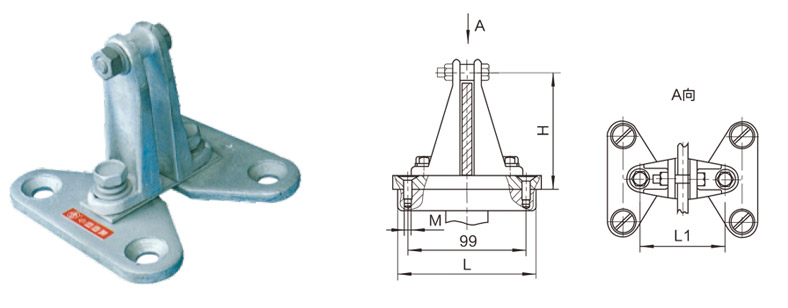

Outdoor supports for single pieces bar (vertical setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWL-101 63 82 140 60 12 2.1
MWL-102 80 100 140 60 12 2.2
MWL-103 100 120 140 60 12 2.3
MWL-104 125 145 140 60 12 2.3


The body is aluminum alloy,the other parts are hot-dip galvanized steel.

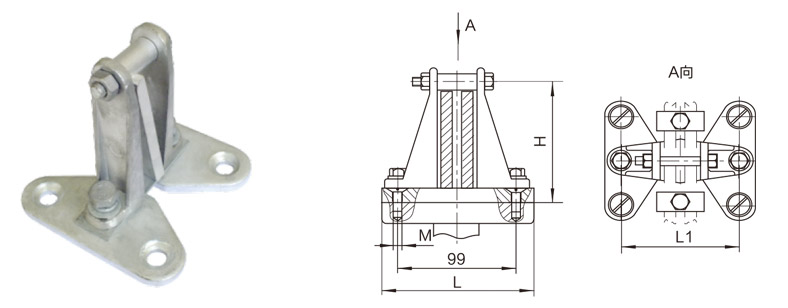

Outdoor supports for two pieces bar (vertical setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWL-201 63 82 140 80 12 2.2
MWL-202 80 100 140 80 12 2.3
MWL-203 100 120 140 80 12 2.3
MWL-204 125 145 140 80 12 2.4


The body is aluminum alloy,the spacer is aluminium,the other parts are hot-dip galvanized steel.

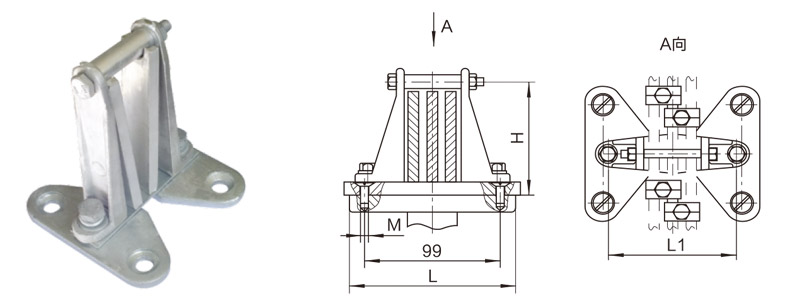

Outdoor supports for three pieces bar (vertical setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MWL-301 63 82 140 100 12 2.2
MWL-302 80 100 140 100 12 2.3
MWL-303 100 120 140 100 12 2.3
MWL-304 125 145 140 100 12 2.4


The body is aluminum alloy,the spacer is aluminium,the other parts are hot-dip galvanized steel.
