Substation FittingTJL、TJT、TJG series T-connector and insulation cover
Back

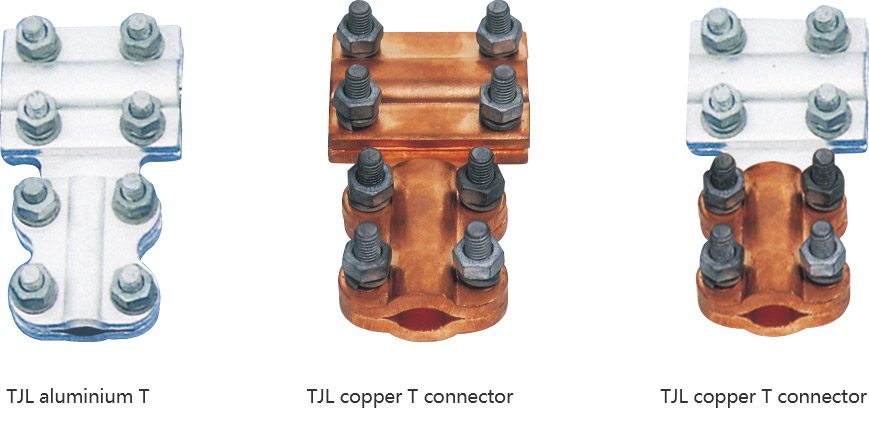

TJL、TJT、TJG series T-connector and insulation cover

TJL、TJT、TJG series T-connector is suitable for the branch connection of 10kV aerial insulation cable,also used for the T-shape connection with electric faciltities and aerial bus in power plant and transformer substation,insulation cover and T-connector are used together.It's action is insulation protection.

Online InquiryEmail Us

Application

TJL、TJT、TJG series T-connector is suitable for the branch connection of 10kV aerial insulation cable,also used for the T-shape connection with electric faciltities and aerial bus in power plant and transformer substation,insulation cover and T-connector are used together.It's action is insulation protection.


Specification

Catalog No. Suitable Conductor (mm2) Insulation cover
Main wire Branch wire
TJL、TJT、TJG-1.1 35~50 35~50 TJL、TJT、TJG50-240
TJL、TJT、TJG-2.1 70~95 35~50 TJL、TJT、TJG50-240
TJL、TJT、TJG-2.2 70~95 70~95 TJL、TJT、TJG50-240
TJL、TJT、TJG-3.1 120~150 35~50 TJL、TJT、TJG50-240
TJL、TJT、TJG-3.2 120~150 70~95 TJL、TJT、TJG50-240
TJL、TJT、TJG-3.3 120~150 120~150 TJL、TJT、TJG50-240
TJL、TJT、TJG-4.1 185~240 35~50 TJL、TJT、TJG50-240
TJL、TJT、TJG-4.2 185~240 70~95 TJL、TJT、TJG50-240
TJL、TJT、TJG-4.3 185~240 120~150 TJL、TJT、TJG50-240
TJL、TJT、TJG-4.4 185~240 185~240 TJL、TJT、TJG50-240
